TROUBLESHOOTING
With our sophisticated Parker Senso control test equipment, we are able to measure flows from 0 to 600 liters per minute, up to 600 Bar, with its in-built diagnostic capabilities we are able to pin point the cause of hydraulic problems. The system can be interlinked with a PLC or any other control equipment and a computer print out produced to establish at what point the fault occurs.

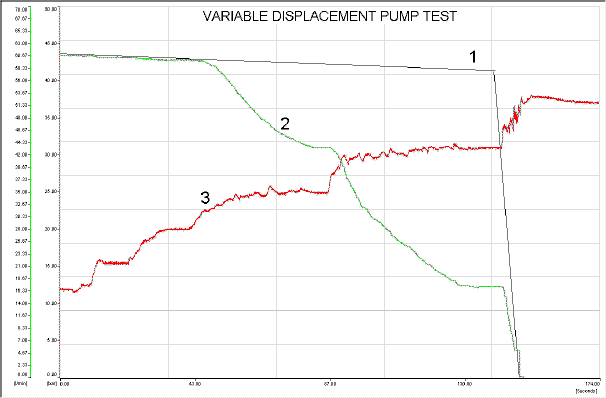

Below is an example of a failing pump, the black line (1) shows expected flow, green line (2) shows actual flow decreasing as pressure increases as shown by red line(3),
